SealIT Solutions · Stavanger An introduction
Single-trip water shut-off

Arrest production decline.

A highly efficient, single-trip water shut-off system, deployed on e-line — engineered for the brownfield, hard-to-reach and challenging wells where conventional WSO solutions fall short.

i. Cost effective Lower cost vs. conventional WSO.
ii. Versatile Any inclination, broad ID range.
iii. Low risk Single trip, real-time feedback.
iv. Huge upside Restored output from mature assets.
North Sea · Offshore
01 — Applications

Where SealIT delivers value.

Engineered for the wells where conventional water shut-off solutions fall short — from declining brownfields to demanding downhole environments.

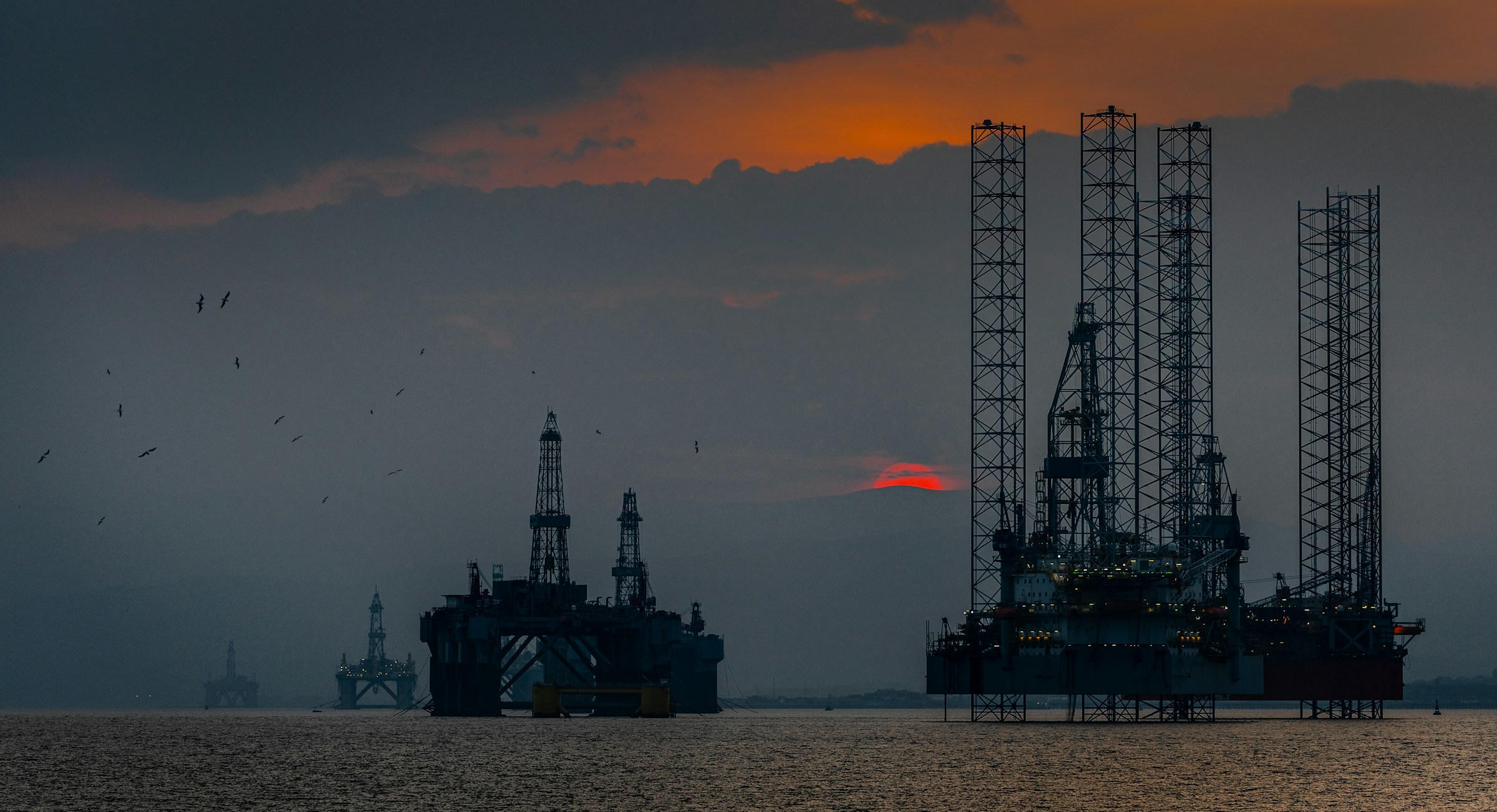

Offshore rigs at sunset
Brownfield · North Sea
Brownfield & hard-to-reach wells

Maximise production from mature assets.

Reach the wells where every additional barrel matters most — without the cost or risk profile of conventional water shut-off.

  • Brownfield assets with declining production
  • Hard-to-reach wells where intervention is costly
  • Horizontal wellbores with open-hole gravel packs
  • Severe ID restrictions above the producing zone

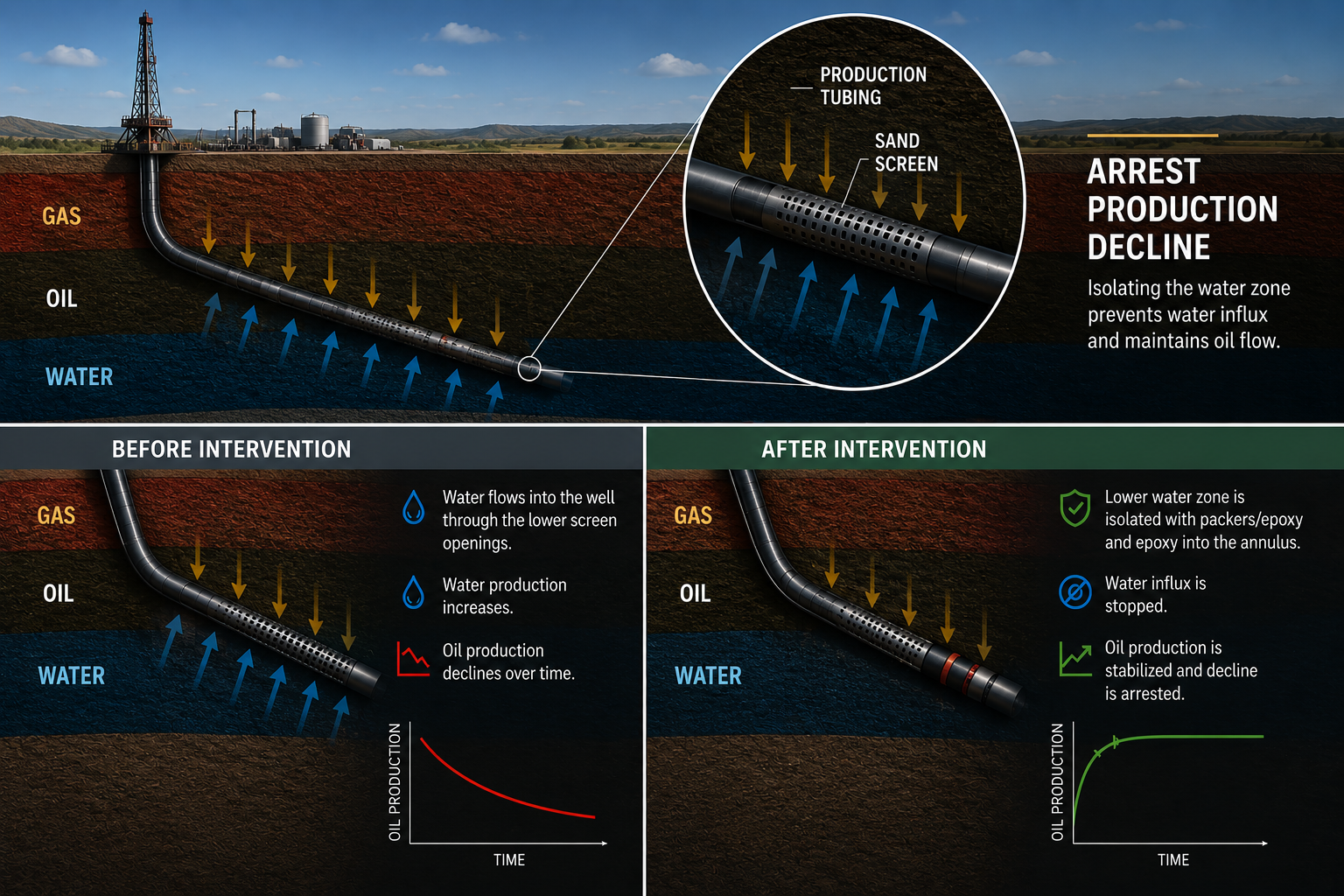

Cross-section showing gas, oil, and water zones with water influx before and after SealIT intervention
Arrest production decline · Click to enlarge
Challenging well environments

Reliable shut-off where others can't reach.

A purpose-built system for the toughest downhole conditions — designed to perform when conventional technologies fail.

  • Engineered for demanding downhole conditions
  • Reliable, long-lasting water shut-off
  • Works where conventional technologies cannot deploy
  • Cost-effective alternative to traditional WSO
02 — Operating sequence

One run on e-line.
Four precise steps.

Deploy, set, inject, retrieve — with real-time feedback throughout the resin plug installation.

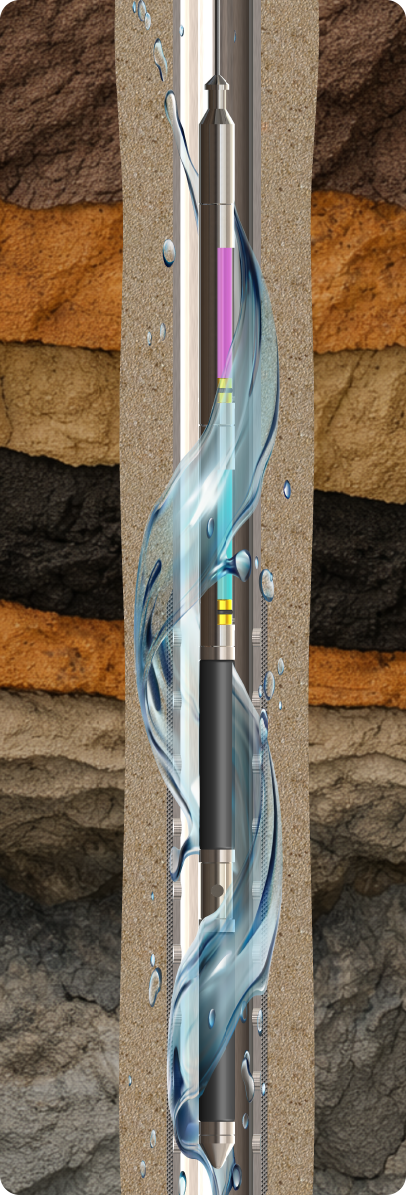

i.   Run in hole
Run in hole

RIH

Reach the zone

Tool conveyed on e-line to the target water-producing zone.

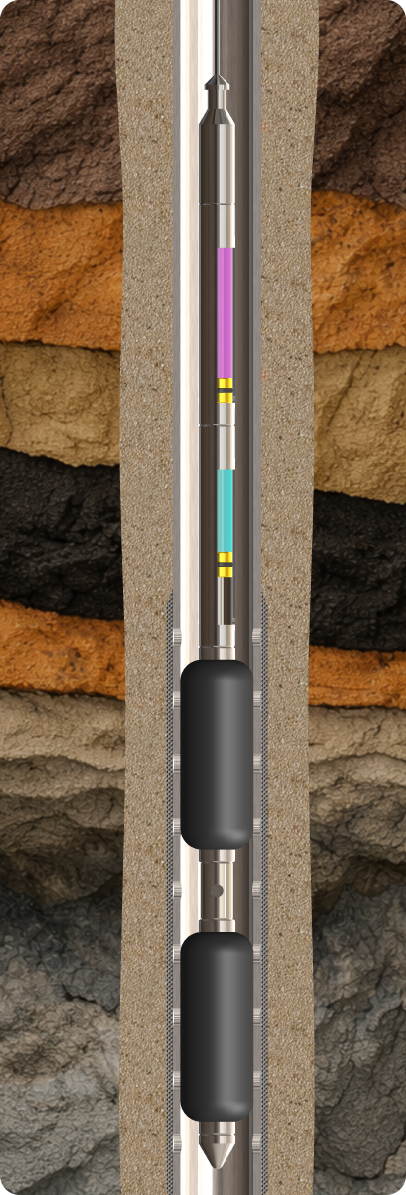

ii.   Inflate packers
Inflate packers

Inflate

Set the seals

Upper and lower packers inflate to isolate the target interval.

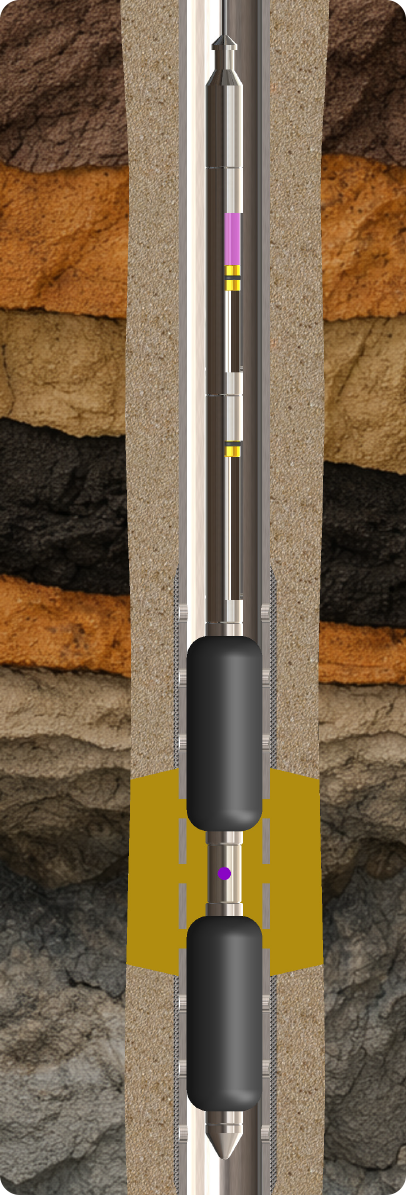

iii.   Inject sealant
Inject sealant

Inject

Place the resin

Two-component resin metered, mixed and placed with real-time feedback.

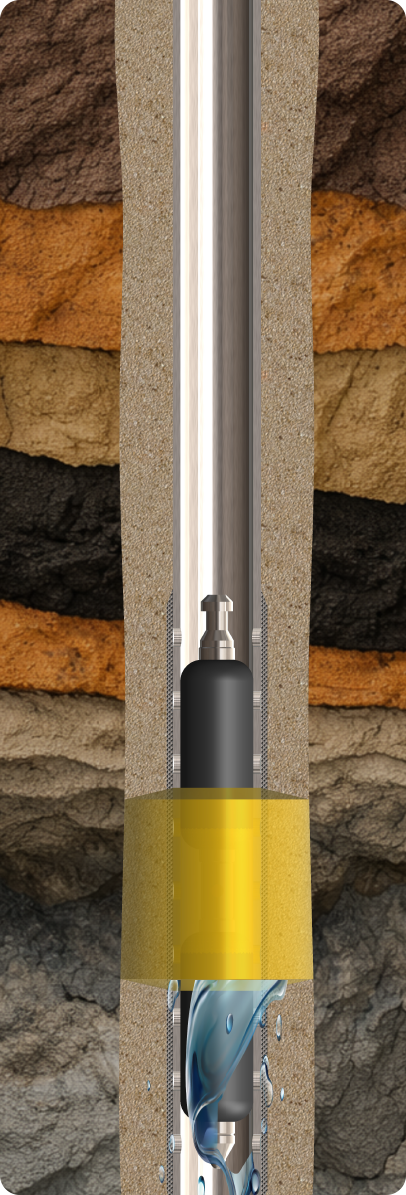

iv.   Release & POOH
Release from plug

Release

Confirm & recover

Tool releases from the cured plug and is recovered to surface.

03 — Tool & specifications

Compact electronics.
Independent control downhole.

A single-trip system with onboard pumps, dual-component reservoirs, a static mixer and inflatable packers — designed for independent, real-time control of the resin and hardener mix.

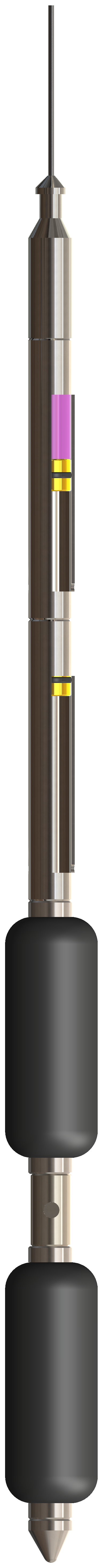

SealIT tool diagram
Electronics
Pump unit A
Component A
Pump unit B
Component B
Inflatable packers
Static mixer
Benefits

Single-trip system deployed on e-line.

Cost-effective compared to conventional WSO solutions.

No chemical handling on location.

Features

Real-time feedback of resin plug installation.

Pre-filled, field-stackable canisters.

Deployable at any inclination.

Independent control of resin / hardener mix — adjustable solidification time, prevents premature setting.

Specifications
Tool OD2.6"
Operating range3-1/2″ – 7″
Max pressure10,000 psi · 700 bar
Max temperature302 °F · 150 °C
ConveyanceE-line · Smart coiled tubing
Ready to talk

Let's arrest production decline together.

A simple introduction. Reach out to take the next step — we'll respond within 24 hours.

Get in touch →
Project partners to sealIT
Shell
Riteks
IKM Well Services AS
